Supplier highlights: Mainly exports to the United States, Malaysia, and Paraguay. They offer full customization, design customization, and sample customization services, and have product certifications.
Key Attributes
| Control Mode | V/F | Rated Power | 1.5KW |
| Nominal Voltage | 220V | Number of Phases | Single Phase, Three Phase |
| Place of Origin | Jiangsu, China | Brand Name | Linecome |
| Model Number | LNC820D-2S0015GB/2S0022PB | Type | frequency converter, VFD, Universal AC Drive, AC Drive, AC-DC-AC Variable-Frequency Drive |

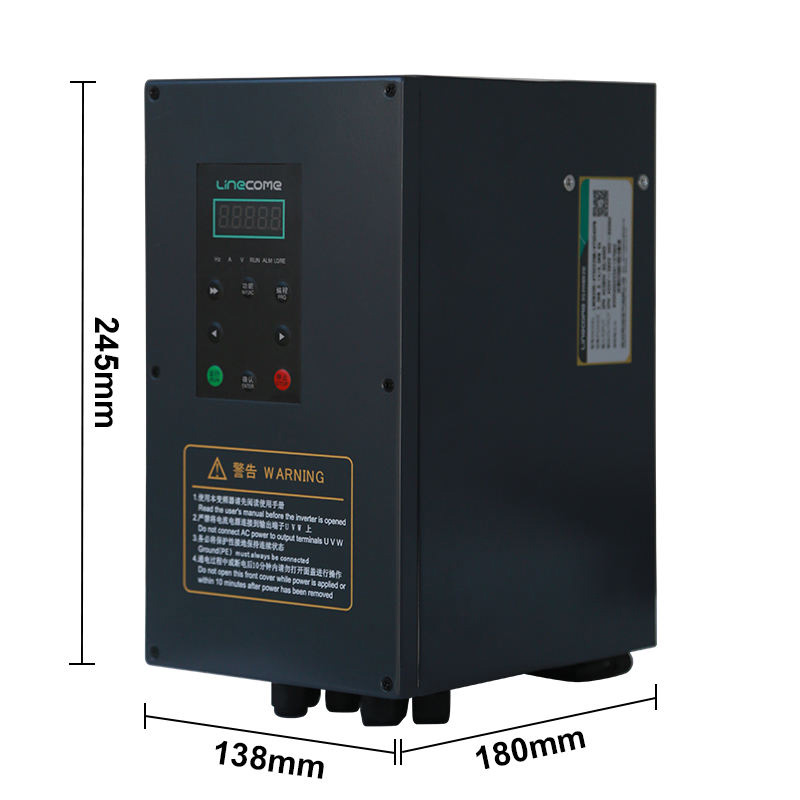

| Application | motor, Pumps, Compressor, AC Motor, Industrial Equipment, Industrial Automation, blowers, motor speed control | Size | 245*138*180mm |
| IP Rating | IP54 | Installation Dimensions | 233*88mm |
| Weight | 1.6kg | Output Frequency | 0-500Hz |
| Certification | CE, ISO | Customizable | Yes |
| Warranty | 18 months | OEM | Accepted |
| Shipping Methods | Air; Express; Sea | MOQ | 1pcs |
| Display | LED Display |

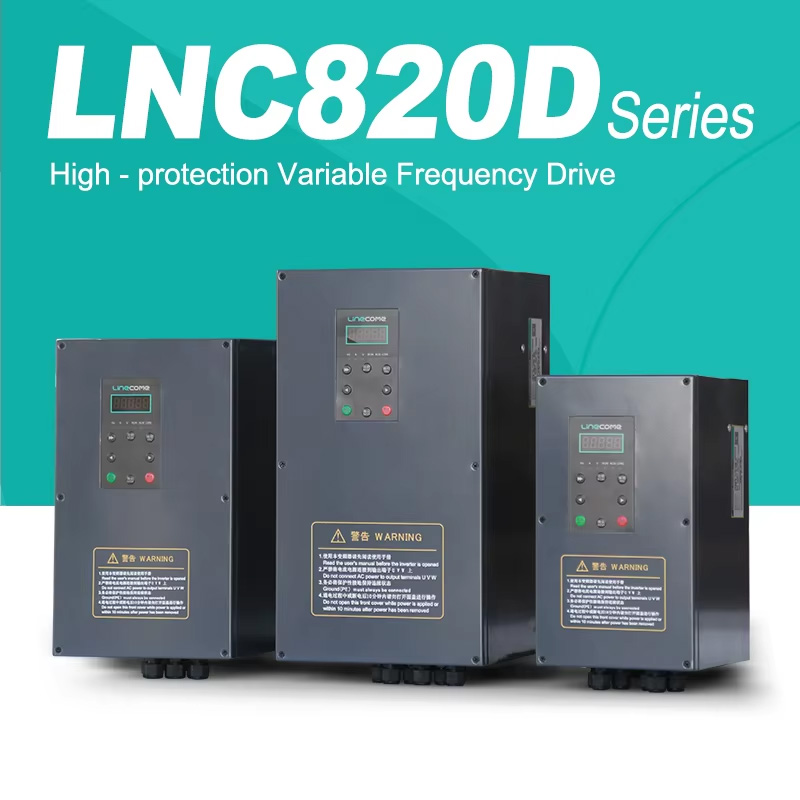

| Name | High - protection Variable Frequency Drive |
| Model | LNC820D-2S0015GB/2S0022PB |
| Brand | LINECOME |
| Material | Iron Shell |
| Color | Grey |
| Power Range | 1.5kW |
| Input Voltage | Single phase 220V |
| Output Voltage | Three phase 220V |
| Output frequency | 0-500Hz |
| Model | Input/Output Voltage (V) | Rated Power (kW) | Rated Input Current (A) | Rated Output Current (A) |
| LNC820D-2S0015GB/2S0022PB | Single Phase 220V±15% /Three Phase 220V±15% | 1.5 | 14 | 7 |
| LNC820D-2S0022GB/2S0040PB | 2.2 | 23 | 9.6 | |
| LNC820D-2S0040GB/2S0055PB | 4 | 20 | 17 | |
| LNC820D-2S0055GB/2S0075PB | 5.5 | 26 | 25 | |
| LNC820D-4T0015GB/4T0022PB | Three Phase 380V±15% /Three Phase 380V±15% | 1.5 | 5 | 3.8 |
| LNC820D-4T0022GB/4T0040PB | 2.2 | 5.8 | 5.1 | |
| LNC820D-4T0040GB/4T0055PB | 4 | 10 | 9 | |
| LNC820D-4T0055GB/4T0075PB | 5.5 | 15 | 13 | |
| LNC820D-4T0075GB/4T0110PB | 7.5 | 20 | 17 | |
| LNC820D-4T0110GB/4T0150PB | 11 | 26 | 25 | |
| LNC820D-4T0150GB/4T0185PB | 15 | 35 | 32 | |
| LNC820D-4T0185GB/4T0220PB | 18.5 | 38 | 37 | |
| LNC820D-4T0220GB/4T0300PB | 22 | 46 | 45 |
