Feature highlights: The 4KW Single Phase Frequency Converter Inverter supports a wide output frequency range of 0-500Hz, suitable for motor speed control in industrial equipment. It features an IP20 protection level, LED display, and a compact design with an installation size of 76*182mm. Certified by CE, ensuring compliance with EU safety standards and enabling market access. Backed by -certified production and strict QC processes, it guarantees reliable performance.
Supplier highlights: Mainly exports to the United States, Malaysia, and Paraguay. They offer full customization, design customization, and sample customization services, and have product certifications.
Key Attributes
| Control Mode | V/F | Rated Power | 4KW |
| Nominal Voltage | 220V | Number of Phases | Single Phase, Three Phase |
| Place of Origin | Jiangsu, China | Brand Name | Linecome |
| Model Number | LNC820-2S0040GB/2S0055PB | Type | frequency converter, VFD, Universal AC Drive, AC Drive, AC-DC-AC Variable-Frequency Drive |

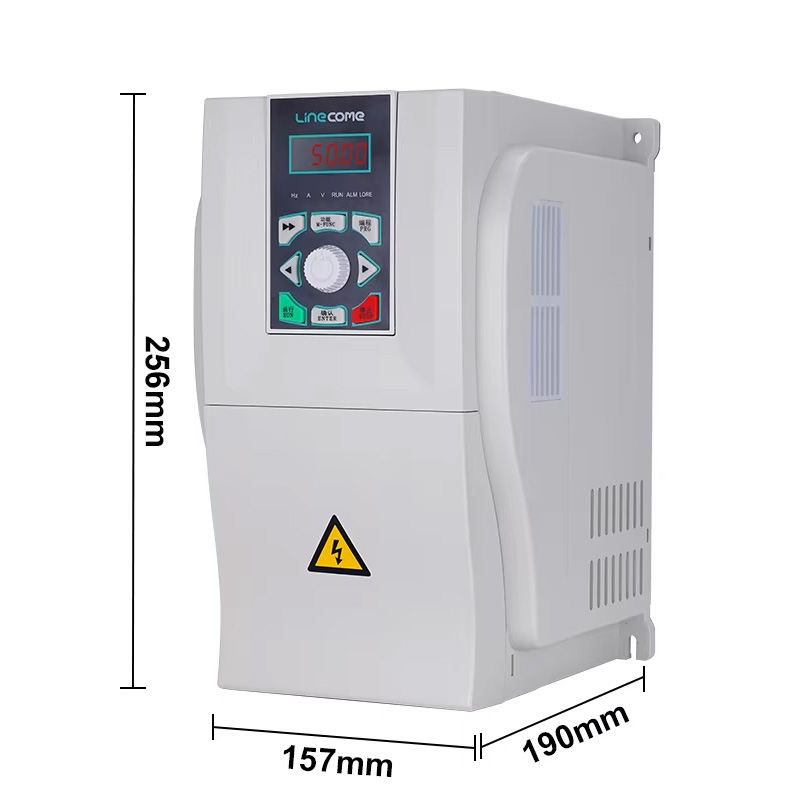

| Application | motor, Pumps, Compressor, AC Motor, Industrial Equipment, Industrial Automation, blowers, motor speed control | Size | 256*157*190mm |
| IP Rating | IP20 | Installation Dimensions | 137*237mm |
| Weight | 4.3kg | Output Frequency | 0-500Hz |
| Certification | CE, ISO | Customizable | Yes |
| Warranty | 18 months | OEM | Accepted |
| Shipping Methods | Air; Express; Sea | MOQ | 1pcs |
| Display | LED Display |
| Name | General-purpose Frequency Converter |
| Model | LNC820-2S0040GB/2S0055PB |
| Brand | LINECOME |
| Material | PC+ABS |
| Color | White grey |
| Power Range | 4kW |
| Input Voltage | Single phase 220V |
| Output Voltage | Three phase 220V |
| Output frequency | 0-500Hz |

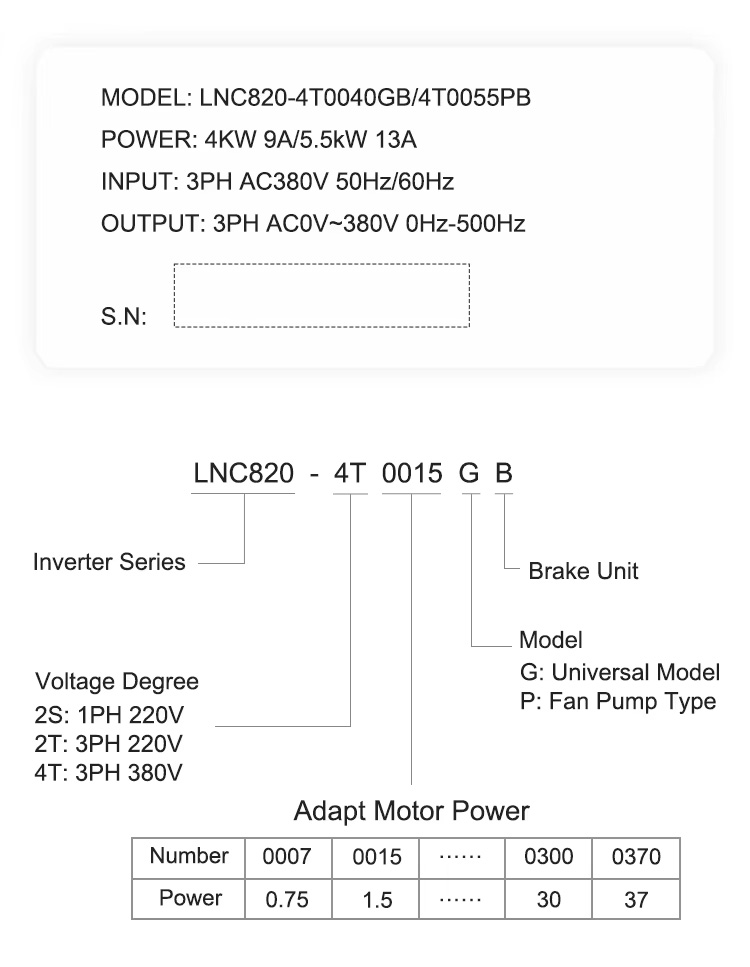

| Model | Input/Output Voltage (V) | Rated Power (kW) | Rated Input Current (A) | Rated Output Current (A) |
| LNC820-2S0007GB/2S0015PB |
Single Phase 220V±15% /Three Phase 220V±15% |
0.75 | 8.2 | 4 |
| LNC820-2S0015GB/2S0022PB | 1.5 | 14 | 7 | |
| LNC820-2S0022GB/2S0040PB | 2.2 | 23 | 9.6 | |
| LNC820-2S0040GB/2S0055PB | 4 | 20 | 17 | |
| LNC820-2S0055GB/2S0075PB | 5.5 | 26 | 25 | |
| LNC820-2T0007GB/2T0015PB |
Three Phase 220V±15% /Three Phase 220V±15% |
0.75 | 5 | 3.8 |
| LNC820-2T0015GB/2T0022PB | 1.5 | 5.8 | 5.1 | |
| LNC820-2T0022GB/2T0040PB | 2.2 | 10.5 | 9 | |
| LNC820-2T0040GB/2T0055PB | 4 | 14.6 | 13 | |
| LNC820-2T0055GB/2T0075PB | 5.5 | 26 | 25 | |
| LNC820-2T0075GB/2T0110PB | 7.5 | 35 | 32 | |
| LNC820-2T0110GB/2T0150PB | 11 | 46.5 | 45 | |
| LNC820-2T0150G/2T0185P | 15 | 62 | 60 | |
| LNC820-2T0185G/2T0220P | 18.5 | 76 | 75 | |
| LNC820-2T0220G/2T0300P | 22 | 92 | 91 | |
| LNC820-2T0300G/2T0370P | 30 | 113 | 112 | |
| LNC820-2T0370G/2T0450P | 37 | 157 | 150 | |
| LNC820-2T0450G/2T0550P | 45 | 180 | 176 | |
| LNC820-2T0550G/2T0750P | 55 | 214 | 210 | |
| LNC820-2T0750G/2T0900P | 75 | 307 | 304 | |
| LNC820-4T0007GB/4T0015PB |
Three Phase 380V±15% /Three Phase 380V±15% |
0.75 | 3.4 | 2.1 |
| LNC820-4T0015GB/4T0022PB | 1.5 | 5 | 3.8 | |
| LNC820-4T0022GB/4T0040PB | 2.2 | 5.8 | 5.1 | |
| LNC820-4T0040GB/4T0055PB | 4 | 10 | 9 | |
| LNC820-4T0055GB/4T0075PB | 5.5 | 15 | 13 | |
| LNC820-4T0075GB/4T0110PB | 7.5 | 20 | 17 | |
| LNC820-4T0110GB/4T0150PB | 11 | 26 | 25 | |
| LNC820-4T0150GB/4T0185PB | 15 | 35 | 32 | |
| LNC820-4T0185GB/4T0220PB | 18.5 | 38 | 37 | |
| LNC820-4T0220GB/4T0300PB | 22 | 46 | 45 | |
| LNC820-4T0300G/4T0370P | 30 | 62 | 60 | |
| LNC820-4T0370G/4T0450P | 37 | 76 | 75 | |
| LNC820-4T0450G/4T0550P | 45 | 92 | 91 | |
| LNC820-4T0550G/4T0750P | 55 | 113 | 112 | |
| LNC820-4T0750G/4T0900P | 75 | 157 | 150 | |
| LNC820-4T0900G/4T1100P | 90 | 180 | 176 | |
| LNC820-4T1100G/4T1320P | 110 | 214 | 210 | |
| LNC820-4T1320G/4T1600P | 132 | 256 | 253 | |
| LNC820-4T1600G/4T2000P | 160 | 307 | 300 | |
| LNC820-4T2000G/4T2200P | 200 | 385 | 377 | |
| LNC820-4T2200G/4T2500P | 220 | 430 | 426 | |
| LNC820-4T2500G/4T2800P | 250 | 468 | 465 | |
| LNC820-4T2800G/4T3150P | 280 | 525 | 520 | |
| LNC820-4T3150G/4T3550P | 315 | 590 | 585 | |
| LNC820-4T3550G/4T4000P | 350 | 665 | 650 | |
| LNC820-4T4000G/4T4500P | 400 | 785 | 725 |
