Feature highlights: This 1.5kW mini frequency converter supports single-phase 220V input and three-phase 220V output, with a wide output frequency range of 0-500Hz, suitable for compressors and motor applications. Certified by CE, it ensures compliance with EU safety standards, providing market access and reliability. The product features an IP20 protection level and comes with an 18-month warranty, ensuring long-term performance.
Supplier highlights: Mainly exports to the United States, Malaysia, and Paraguay. They offer full customization, design customization, and sample customization services, and have product certifications.
Key Attributes
| Control Mode | V/F | Rated Power | 15KW |
| Nominal Voltage | 380V | Number of Phases | Three Phase |
| Place of Origin | Jiangsu, China | Brand Name | Linecome |
| Model Number | LNC500-4T0150G | Type | frequency converter, VFD, Universal AC Drive, AC Drive, AC-DC-AC Variable-Frequency Drive |

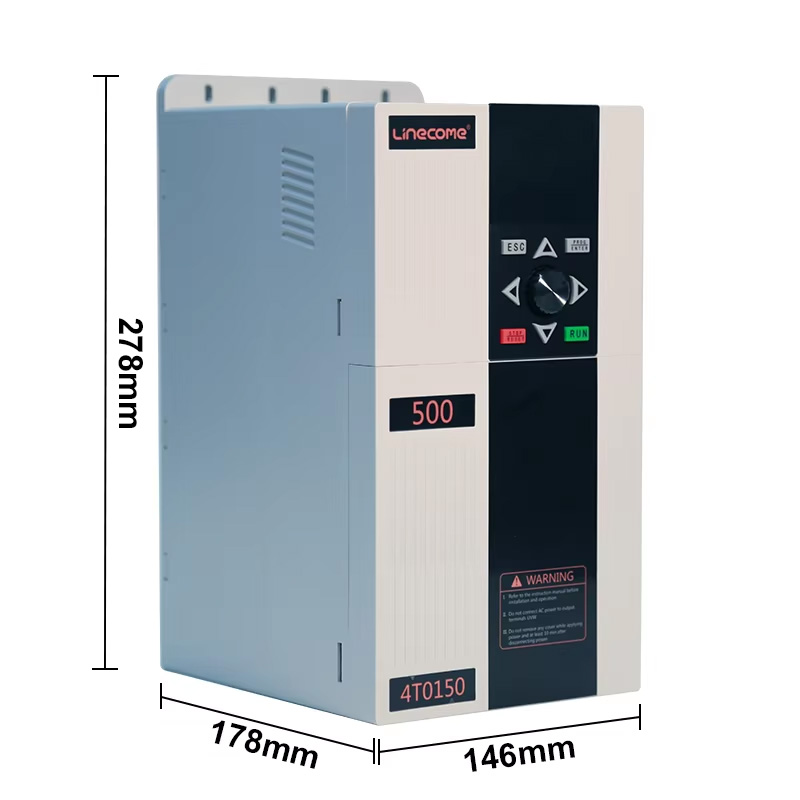

| Application | motor, Pumps, Compressor, AC Motor, Industrial Equipment, Industrial Automation, blowers, motor speed control | Size | 278*146*178mm |
| IP Rating | IP20 | Installation Dimensions | 100*266mm |
| Weight | 4kg | Output Frequency | 0-500Hz |
| Certification | CE, ISO | Customizable | Yes |
| Warranty | 18 months | OEM | Accepted |
| Shipping Methods | Air; Express; Sea | MOQ | 1pcs |
| Display | LED Display |
| Name | Economic Frequency Converter |
| Model | LNC500-4T0150G |
| Brand | LINECOME |
| Material | PC+ABS |
| Color | White grey+Black |
| Power Range | 15kW |
| Input Voltage | Three phase 380V |
| Output Voltage | Three phase 380V |
| Output frequency | 0-500Hz |

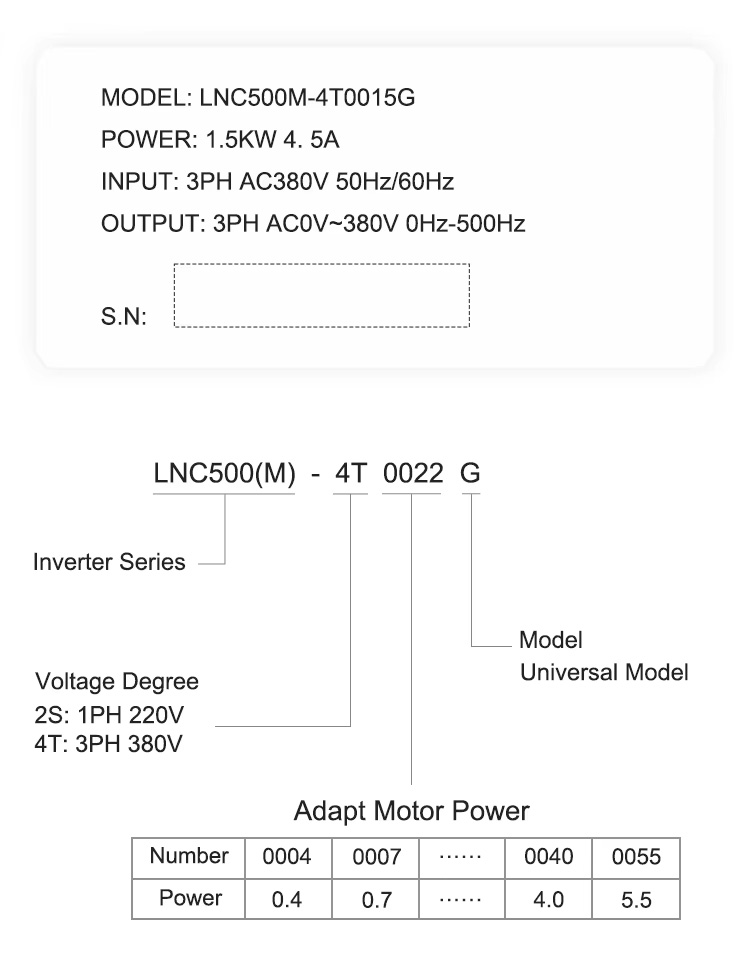

| Model | Input/Output Voltage (V) | Rated Power (kW) | Rated Input Current (A) | Rated Output Current (A) |
| LNC500M-2S0007G | Single Phase 220V±15% /Three Phase 220V±15% | 0.75 | 8.2 | 5 |
| LNC500M-2S0015G | 1.5 | 14 | 7 | |
| LNC500M-2S0022G | 2.2 | 23 | 10 | |
| LNC500M-4T0007G | Three Phase 380V±15% /Three Phase 380V±15% | 0.75 | 3.4 | 3 |
| LNC500M-4T0015G | 1.5 | 5 | 4.5 | |
| LNC500M-4T0022G | 2.2 | 5.8 | 5.5 | |
| LNC500M-4T0040G | 4 | 10.5 | 9 | |
| LNC500-2S0040G | Single Phase 220V±15% /Three Phase 220V±15% | 4 | 34 | 16 |
| LNC500-2S0055G | 5.5 | 47 | 19 | |
| LNC500-4T0055G | Three Phase 380V±15% /Three Phase 380V±15% | 5.5 | 14.6 | 13 |
| LNC500-4T0075G | 7.5 | 20.5 | 16 | |
| LNC500-4T0110G | 11 | 26 | 25 | |
| LNC500-4T0150G | 15 | 35 | 30 | |
| LNC500-4T0185G | 18.5 | 38.5 | 39 | |
| LNC500-4T0220G | 22 | 46.5 | 45 | |
| LNC500-4T0300G | 30 | 62 | 60 | |
| LNC500-4T0370G | 37 | 76 | 75 | |
| LNC500-4T0450G | 45 | 92 | 91 | |
| LNC500-4T0550G | 55 | 113 | 112 | |
| LNC500-4T0750G | 75 | 157 | 150 | |
| LNC500-4T0900G | 90 | 180 | 176 | |
| LNC500-4T1100G | 110 | 214 | 210 | |
| LNC500-4T1320G | 132 | 256 | 260 | |
| LNC500-ST0007G | Single Phase 220V±15% /Three Phase 380V±15% | 0.75 | 5 | 3 |
| LNC500-ST0015G | 1.5 | 10 | 4.5 | |
| LNC500-ST0022G | 2.2 | 15 | 5.5 | |
| LNC500-ST0040G | 4 | 27 | 9 | |
| LNC500-ST0055G | 5.5 | 37 | 13 | |
| LNC500-ST0075G | 7.5 | 51 | 16 | |
| LNC500-ST0110G | 11 | 75 | 25 | |
| LNC500-ST0150G | 15 | 102 | 30 | |
| LNC500-ST0220G | 22 | 150 | 39 | |
| LNC500-ST0300G | 30 | 204 | 45 | |
| LNC500-ST0370G | - | - | - | |
| LNC500-ST0450G | - | - | - |
