Feature highlights: This 1.5KW Single-Phase Frequency Converter transforms 220V input to 380V three-phase output, supporting 0-500Hz frequency with IP20 protection for industrial motor control. Certified by CE, ensuring compliance with EU safety standards and enabling market access.
Supplier highlights: Mainly exports to the United States, Malaysia, and Paraguay. They offer full customization, design customization, and sample customization services, and have product certifications.
Key Attributes
| Control Mode | V/F | Rated Power | 1.5kw |
| Nominal Voltage | 220V | Number of Phases | Single Phase, Three Phase |
| Place of Origin | Jiangsu, China | Brand Name | Linecome |
| Model Number | LNC500M-2S0015G | Type | frequency converter, VFD, Universal AC Drive, AC Drive, AC-DC-AC Variable-Frequency Drive |

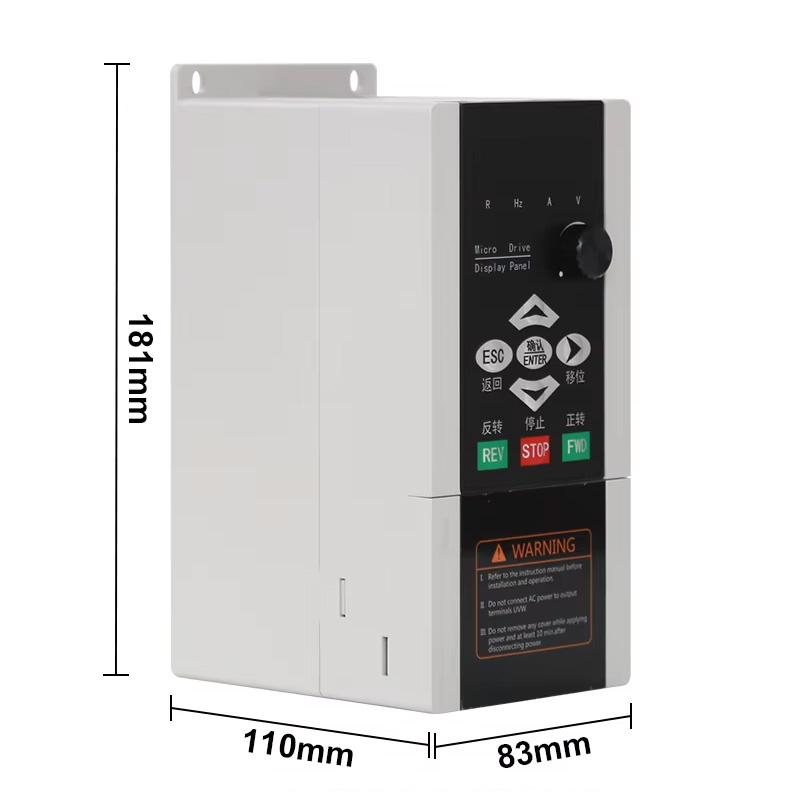

| Application | motor, Pumps, Compressor, AC Motor, Industrial Equipment, Industrial Automation, blowers, motor speed control | Size | 181*83*110mm |
| IP Rating | IP20 | Installation Dimensions | 65*172mm |
| Weight | 1kg | Output Frequency | 0-500Hz |
| Certification | CE, ISO | Customizable | Yes |
| Warranty | 18 months | OEM | Accepted |
| Shipping Methods | Air; Express; Sea | MOQ | 1pcs |

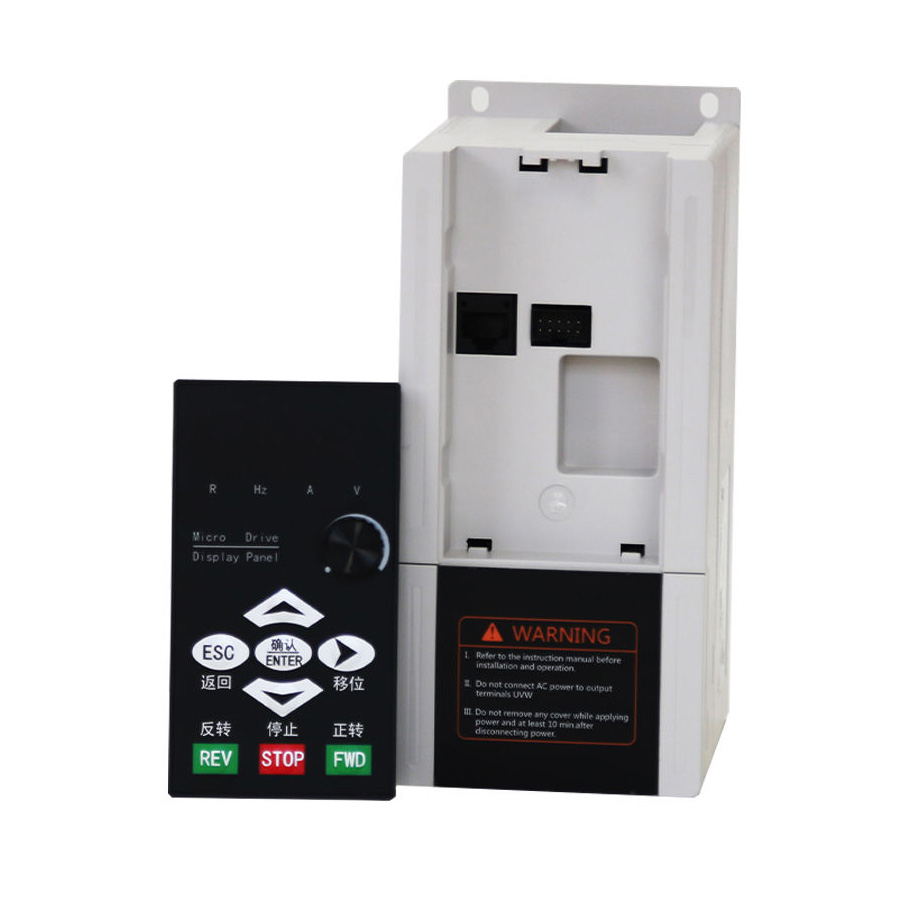

| Display | LED Display |
| Name | Economic Frequency Converter |
| Model | LNC500M-2S0015G |
| Brand | LINECOME |
| Material | PC+ABS |
| Color | White grey+Black |
| Power Range | 1.5kW |
| Input Voltage | Single phase 220V |
| Output Voltage | Three phase 220V |
| Output frequency | 0-500Hz |

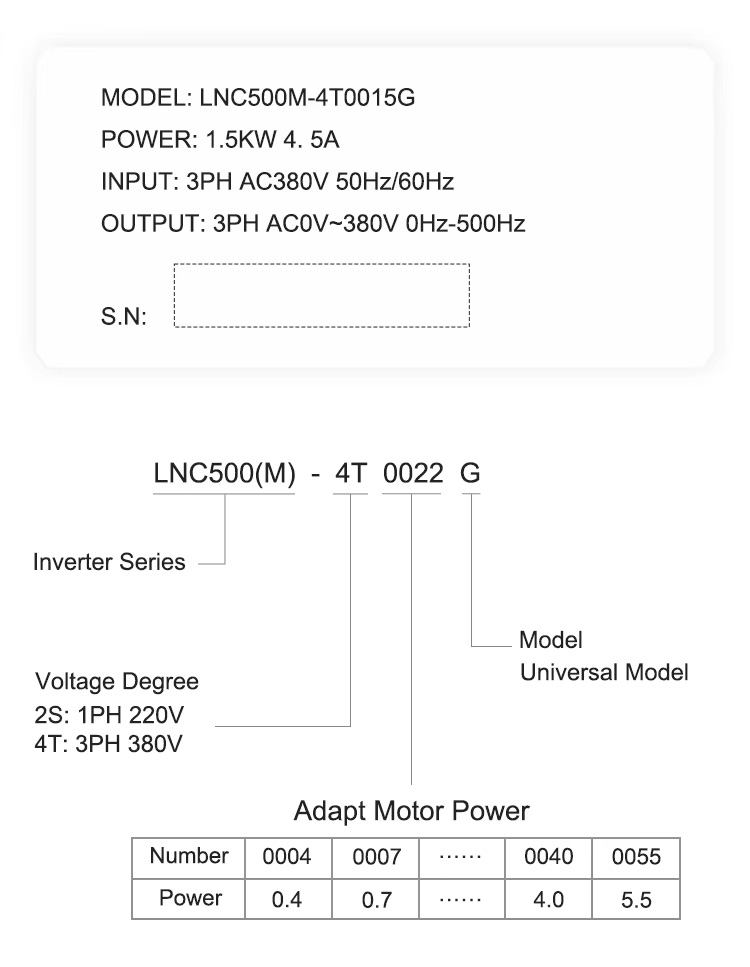

| Model | Input/Output Voltage (V) | Rated Power (kW) | Rated Input Current (A) | Rated Output Current (A) |
| LNC500M-2S0007G | Single Phase 220V±15% /Three Phase 220V±15% | 0.75 | 8.2 | 5 |
| LNC500M-2S0015G | 1.5 | 14 | 7 | |
| LNC500M-2S0022G | 2.2 | 23 | 10 | |
| LNC500M-4T0007G | Three Phase 380V±15% /Three Phase 380V±15% | 0.75 | 3.4 | 3 |
| LNC500M-4T0015G | 1.5 | 5 | 4.5 | |
| LNC500M-4T0022G | 2.2 | 5.8 | 5.5 | |
| LNC500M-4T0040G | 4 | 10.5 | 9 | |
| LNC500-2S0040G | Single Phase 220V±15% /Three Phase 220V±15% | 4 | 34 | 16 |
| LNC500-2S0055G | 5.5 | 47 | 19 | |
| LNC500-4T0055G | Three Phase 380V±15% /Three Phase 380V±15% | 5.5 | 14.6 | 13 |
| LNC500-4T0075G | 7.5 | 20.5 | 16 | |
| LNC500-4T0110G | 11 | 26 | 25 | |
| LNC500-4T0150G | 15 | 35 | 30 | |
| LNC500-4T0185G | 18.5 | 38.5 | 39 | |
| LNC500-4T0220G | 22 | 46.5 | 45 | |
| LNC500-4T0300G | 30 | 62 | 60 | |
| LNC500-4T0370G | 37 | 76 | 75 | |
| LNC500-4T0450G | 45 | 92 | 91 | |
| LNC500-4T0550G | 55 | 113 | 112 | |
| LNC500-4T0750G | 75 | 157 | 150 | |
| LNC500-4T0900G | 90 | 180 | 176 | |
| LNC500-4T1100G | 110 | 214 | 210 | |
| LNC500-4T1320G | 132 | 256 | 260 | |
| LNC500-ST0007G | Single Phase 220V±15% /Three Phase 380V±15% | 0.75 | 5 | 3 |
| LNC500-ST0015G | 1.5 | 10 | 4.5 | |
| LNC500-ST0022G | 2.2 | 15 | 5.5 | |
| LNC500-ST0040G | 4 | 27 | 9 | |
| LNC500-ST0055G | 5.5 | 37 | 13 | |
| LNC500-ST0075G | 7.5 | 51 | 16 | |
| LNC500-ST0110G | 11 | 75 | 25 | |
| LNC500-ST0150G | 15 | 102 | 30 | |
| LNC500-ST0220G | 22 | 150 | 39 | |
| LNC500-ST0300G | 30 | 204 | 45 | |
| LNC500-ST0370G | - | - | - | |
| LNC500-ST0450G | - | - | - |
